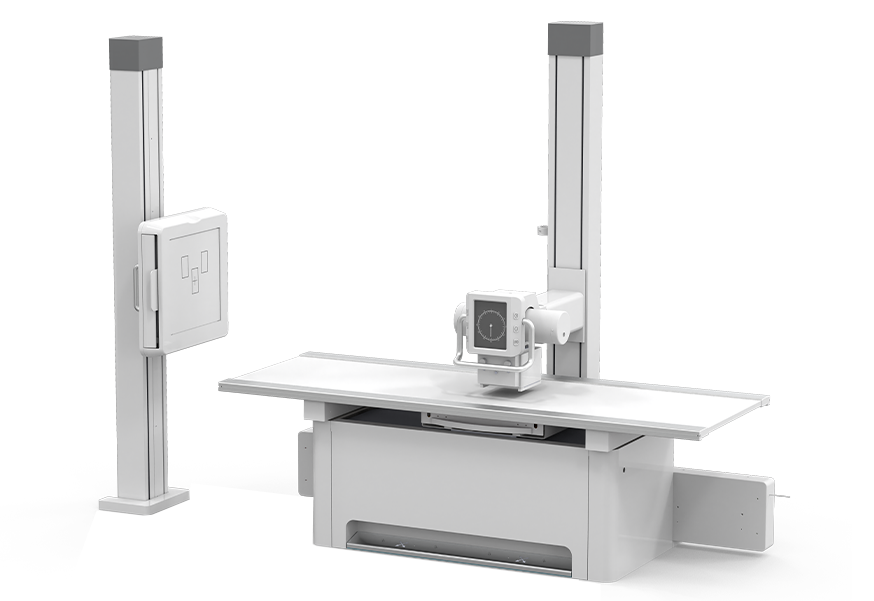

Double Column

Tube column lateral movement range:1900mm±3%

Tube longitudinal movement range:1500mm±3%

The lowest position of the center of the ball tube above the ground:470mm±3%

Tube rotation angle: ±180° Permanent magnets are positioned every 90º

BUCKY Up and down movement stroke：1550mm±3%

BUCKY The lowest position between the center and the ground：470mm±3%

Maximum profile size of bed panel:2200mmX800mmX10mm

Longitudinal movement range of floating bed:740mm±3%(foot-operated)

Lateral movement range of floating bed:210mm±3%(foot-operated)

Minimum distance from the bed to the ground:680mm±3%

Floating bed lift and movement range:270mm

Flat pallet movement range:650mm±3%
