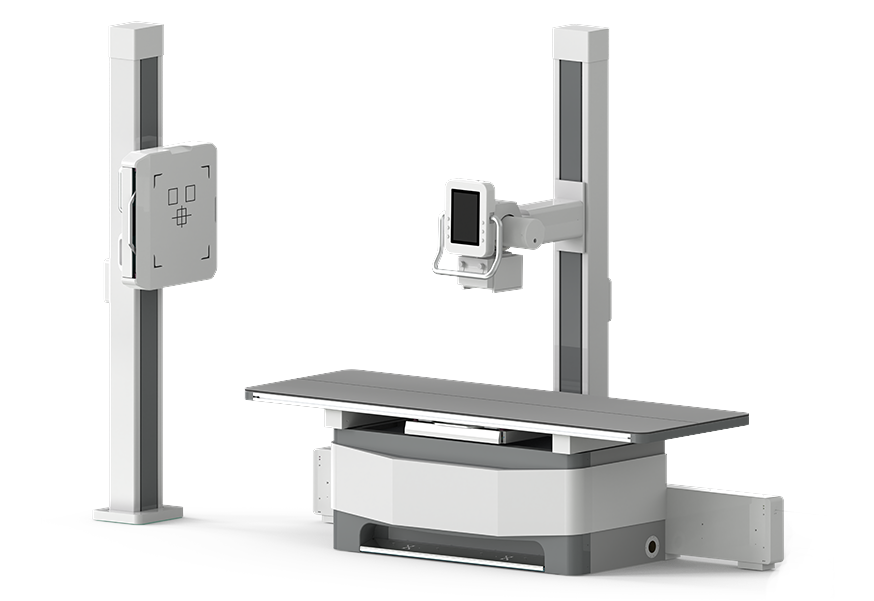

Double Column
ConsultationMechanical Parameters：
1.Tube Upright(manual electric switching dual mode)
Tube column lateral movement range:1900mm±3%
Tube longitudinal movement range:1500mm±3%
The lowest position of the center of the ball tube above the ground:470mm±3%
Tube rotation angle: ±180° Permanent magnets are positioned every 90º(manual)
2.BUCKY column (manual electric switching dual mode)：
BUCKY Up and down movement stroke：1550mm±3%
BUCKY The lowest position between the center and the ground：470mm±3%
3.Fixed bed (manual mode):
Maximum profile size of bed panel:2300mmX800mmX10mm
Longitudinal movement range of floating bed:740mm±3%(foot-operated)
Lateral movement range of floating bed:210mm±3%(foot-operated)
Minimum distance from the bed to the ground:700mm±3%
Flat pallet movement range:650mm±3%
